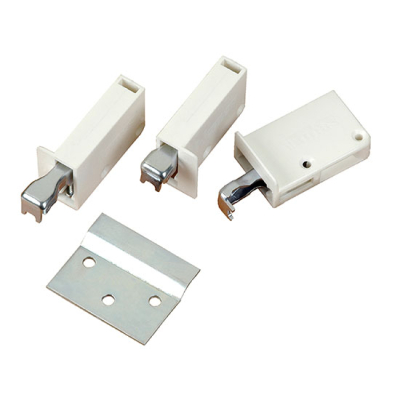

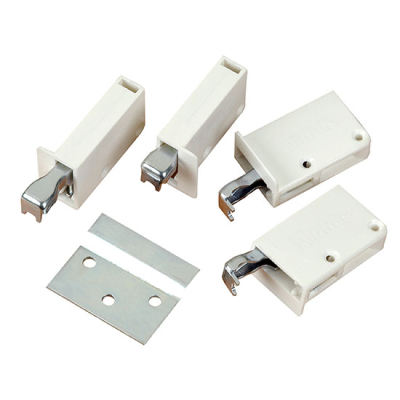

3 ‘D’ Cabinet Bracket & ‘Z’ Plate

Product Information
Product Code : 440.010 to 440.020 [Refer Index Page]
Color : White / Metal
Finish : Engg. Polymer & Metal

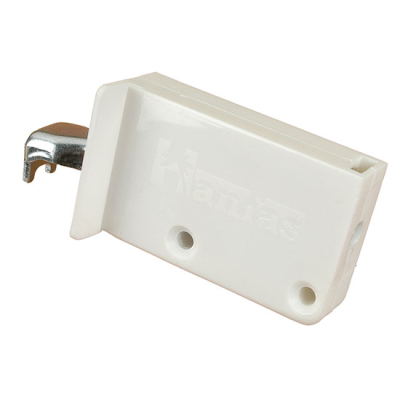

3 D Cabinet Bracket :

• Loading capacity is 55 Kg/Pc
• 3-D adjustment of Cabinets
• Z-axis Depth upto 15 mm
• X-axis Lateral upto 25 mm
• Y-axis Height upto 19 mm

‘Z’ Plate :

• ‘Z’ Plate is used for wall mounting purpose.

Installation Diagram :

Click Here To Enlarge
